HIGH QUALITY STAINLESS STEEL MONO-BOLT RIVET

  • 10000 - 49999 Pieces
    $0.10
  • 50000 - 299999 Pieces
    $0.08
  • >=300000 Pieces
    $0.06
Rivets diameter:
6.4mm 4.8mm
Rivets type:
Countersunk head blind rivets
Rivets length:
12mm 10mm 22mm 16mm 20mm 14mm
Lead Time:
Quantity(Pieces) 1 - 50000 50001 - 300000 >300000
Est. Time(days) 7 15 Negotiable
Customization:
Customized packaging (Min. Order: 200000 Pieces)
Samples:
$0.01 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Material:
Stainless Steel
Finish:
Bright(Uncoated)
Place of Origin:
China
Brand Name:
BOUNTY
Model Number:
Standard
Standard:
ISO
Sample:
Free
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
BOX+CARTON
Port
SHANGHAI PORT
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50000 50001 - 300000 >300000
Est. Time(days) 7 15 To be negotiated
Product Description

The Monobolt rivet is a hole filling, multi-grip, structural breakstem rivet available in steel or aluminum construction. Multi-grip means the rivet has the capability to join component parts having a broad range of thicknesses, thus reducing inventory where a variety of rivet sizes might otherwise be necessary. Hole filling means the rivet will expand radially into the application hole to provide a strong, vibration resistant joint and compensate for irregular, oversized, slotted or misaligned holes. Also, Monobolt rivet can stop sheet movement in applications with non-standard holes.


However, the main feature of the Monobolt rivet is an internal, mechanical lock of the rivet stem. A special nose tip with a cutting ring (anvil) is required. During installation, when the mandrel head comes in contact with the nose tip, the anvil cuts into and folds material from the mandrel head (skive) into a ledge located in the inner diameter of the rivet head. This prevents the mandrel from falling back through the rivet. Additionally, the locked stem forms a weather tight seal and provides a very strong, vibration resistant joint without the damage, electrical problems or rattling due to loose stems.

Installation
Features

Multi-grip capability

High shear and tensile strength

Good sheet take-up performance

Visible lock for quick and easy inspection

Excellent hole fill via rapidly expanded body

Stem mechanically locked into body

Wide choice of installation tools

One fastener can be used to replace several standard grip fasteners

Reduced fastener inventory and simpler stock control

Compensates for irregular, oversized, slotted or misaligned holes

Can stop sheet movement in non-standard holes

Large gap closing capability

Provides very strong, vibration resistant joints

No damage, electrical problems or rattling due to loose stems

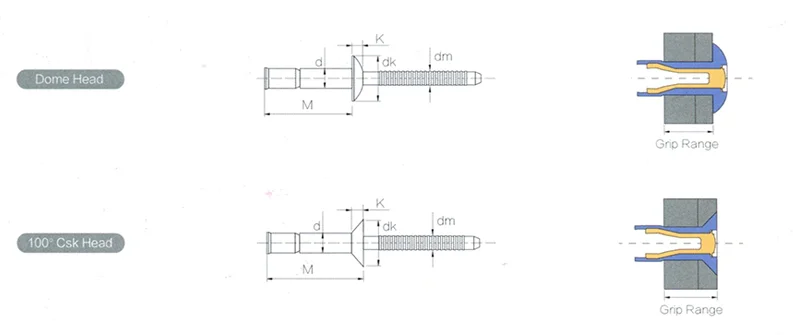

Specification
